The machine tool adopts Mitsubishi PLC, frequency converter, and touch screen, which ensures stable and reliable system performance. The parameter settings are input through the touch screen, which facilitates debugging and management.
The equipment adopts full servo, split layout, and the workbench can be operated separately.
Using ceramic centerless support for workpieces, with their end faces compressed, the eccentric machine module has been adjusted outside the machine before installed.
The workpiece spindle is lubricated with oil mist; The workpiece rotation speed and oscillation frequency are adjusted by the frequency converter.
The workpiece is superfinished at a single station, with rough oilstone and secondary pressurization for fine finishing, and automatic compensation for losses.
Automatic feeding and automatic material handling.
Total power of machine: 8.0kw

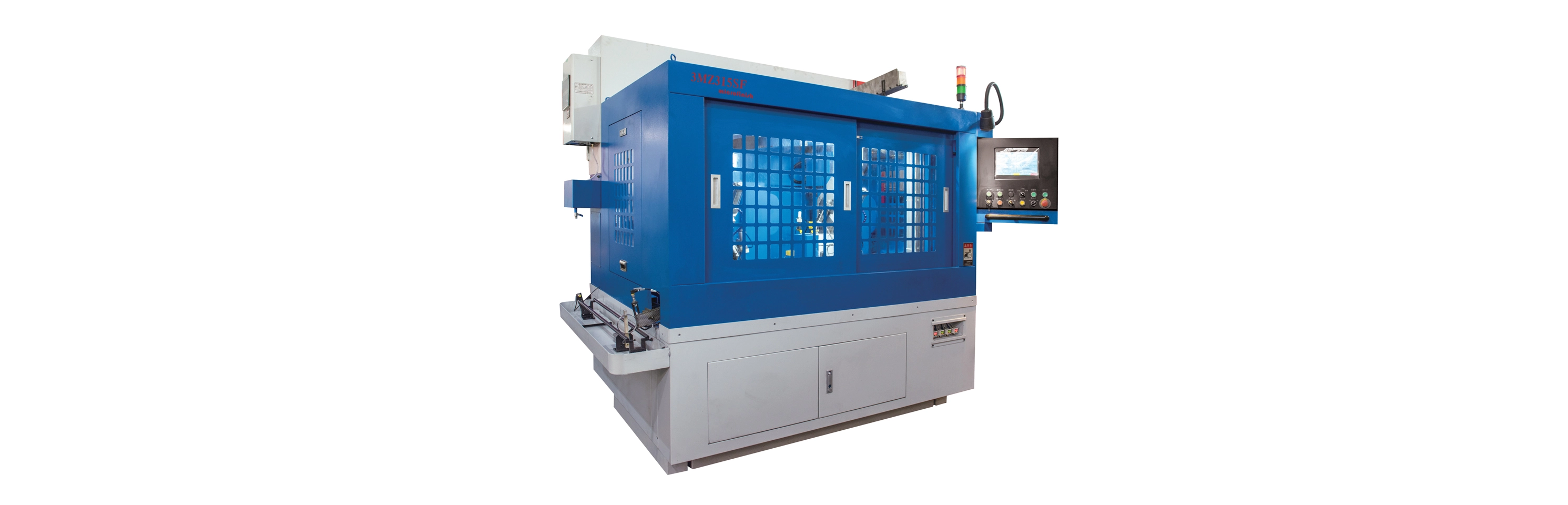

Automatic bearing inner and outer ring groove superfinishing machine | |
Technical Specifications | |
TYPE | 3MZ315SF / 3MZ329SF |
The inner ring inner diameter of the ring | ф10~ф60mm |
The outer ring outer diameter of the ring | ф30~ф100mm |
Working width | 13~32mm |
Workpiece spindle speed | 5~5000 r/min Stepless speed regulation |
oscillation frequency | 5~750 r/min Stepless speed regulation |
Oscillation angle | 0~40° |
Total power of machine tool | 8.0KW |
Working efficiency | 10~20s / PCS |
