The machine tool adopts Mitsubishi PLC, frequency converter, and touch screen, which ensures stable and reliable system performance. The parameter settings are input through the touch screen, which facilitates debugging and management.
The equipment adopts full servo, split layout, and the workbench can be operated separately.
Using ceramic centerless support for workpieces, with their end faces compressed, the eccentric machine module has been adjusted outside the machine before installed.
The workpiece spindle is lubricated with oil mist; The workpiece rotation speed and oscillation frequency are adjusted by the frequency converter.
The workpiece is superfinished at a single station, with rough oilstone and secondary pressurization for fine finishing, and automatic compensation for losses.
Automatic feeding and automatic material handling.
Total power of machine: 10~12kw
Advanced Control System: Equipped with Mitsubishi PLC, frequency converters, and a touch screen, the machine offers a stable and reliable system for precise operations. Parameters can be easily adjusted through the touch screen for seamless setup and management.
Precision Support: Ceramic centerless support and end-face clamping ensure exceptional rotational accuracy, with external eccentric pre-adjustments for added convenience.
Efficient Superfinishing: Completes coarse and fine superfinishing with dual-pressure adjustments at a single station, ensuring high-quality output.
Enhanced Automation: Includes automatic filling and sorting systems to streamline workflow and reduce manual intervention.
Optimized Performance: Oil mist lubrication enhances spindle durability, and variable frequency control adjusts workpiece speed and vibration for precise results.
High Productivity: With a total power consumption of 10 kW, the machine delivers efficient operation, processing 2 pieces in just 30 seconds.
Ideal for automotive and industrial production lines, this machine ensures high-precision machining of bearing grooves while maximizing efficiency and reducing downtime. Perfect for businesses looking to improve product quality and production capacity.

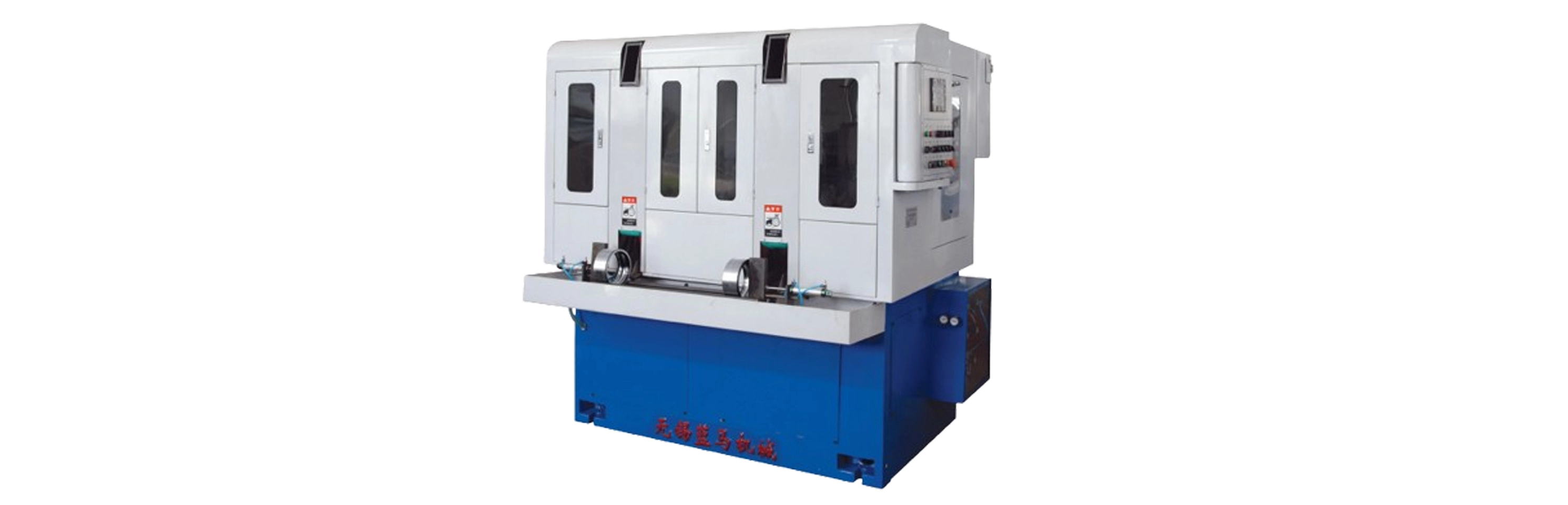

Automatic bearing inner / outer ring groove superfinishing machine | ||
Technical Specifications | ||
TYPE | 3MZ315H / 3MZ329H | 3MZ315DD / 3MZ329DD |
The inner ring inner diameter of the ring | ф40~ф70mm | ф50~ф100mm |
The outer ring outer diameter of the ring | ф80~ф160mm | ф100~ф200mm |
Working width | 18~40mm | 20~45mm |
Workpiece spindle speed | 0~5000 r/min Stepless speed regulation | |
Superfinishing head oscillation frequency | 0~750 r/min Stepless speed regulation | |
Oscillation angle | 0~40° | 0~40° |
Total power of machine tool | 10KW | 12KW |
Working efficiency | 30s / 2PCS | 40s / 2PCS |
