The machine tool adopts Mitsubishi PLC, frequency converter, and touch screen, which ensures stable and reliable system performance. The parameter settings are input through the touch screen, which facilitates debugging and management.
The equipment adopts full servo, split layout, and the workbench can be operated separately.
Using ceramic centerless support for workpieces, with their end faces compressed, the eccentric machine module has been adjusted outside the machine before installed.
The workpiece spindle is lubricated with oil mist; The workpiece rotation speed and oscillation frequency are adjusted by the frequency converter.
The workpiece is superfinished at a single station, with rough oilstone and secondary pressurization for fine finishing, and automatic compensation for losses.
Automatic feeding and automatic material handling.
Total power of machine: 8.0kw
Stable & Reliable System: Powered by Mitsubishi PLC, frequency converter, and touch screen, the machine ensures precise and stable operation. Parameter settings are easily adjustable via the touch screen for seamless management.
Precision Machining: Ceramic centerless support and end-face clamping, paired with external eccentric pre-adjustment, deliver exceptional machining accuracy and stability.
Optimized Performance: Oil mist lubrication enhances spindle durability, while variable frequency control ensures precise adjustment of workpiece speed and vibration.
Efficient Operation: The machine completes coarse and fine superfinishing in a single station with dual-pressure adjustment. Automatic wear compensation and alarms for stone shortage ensure smooth, continuous operation.
High Productivity: Equipped with automatic filling and sorting systems, it achieves a fast processing efficiency of 10 seconds per piece.
Energy Efficient: Total power consumption is just 8.0 kW, reducing energy costs while maintaining high output.
Perfect for the automotive and industrial sectors, this machine is ideal for the precision superfinishing of bearing grooves in high-volume production lines. Achieve superior product quality and optimize operational efficiency effortlessly.

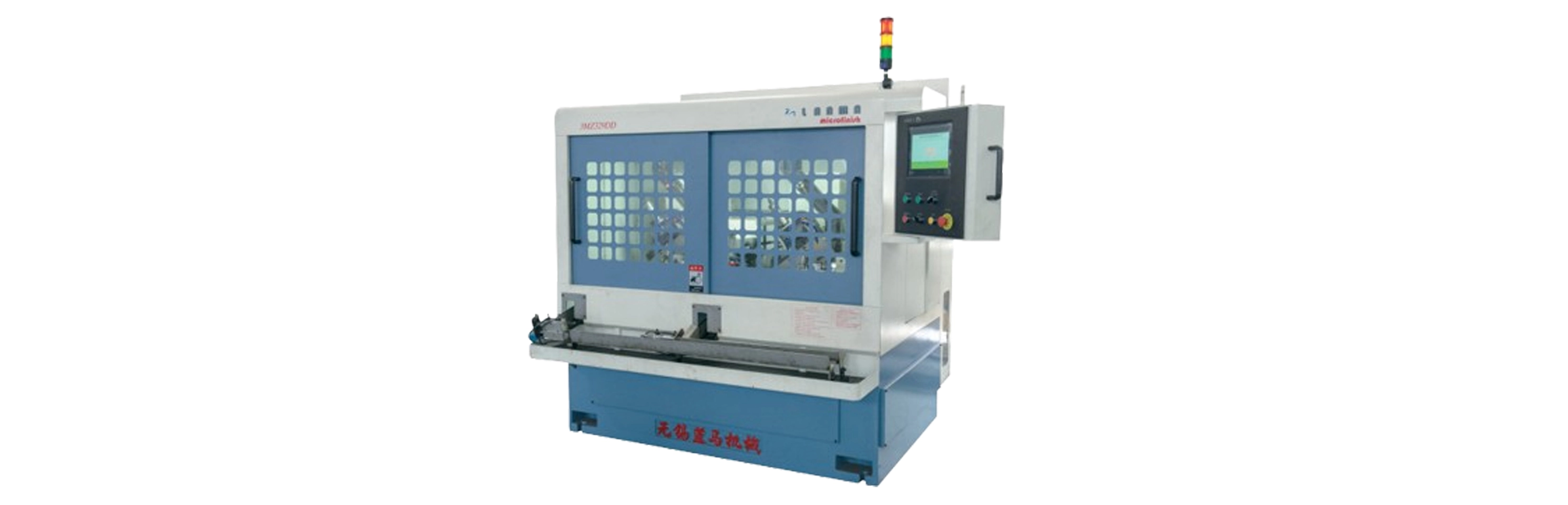

Automatic bearing inner and outer ring groove superfinishing machine | |
Technical Specifications | |
TYPE | 3MZ315H / 3MZ329H / 3MZ315DD / 3MZ329DD |
The inner ring inner diameter of the ring | ф10~ф60mm |
The outer ring outer diameter of the ring | ф30~ф80mm |
Working width | 13~32mm |
Workpiece spindle speed | 0~8000 r/min Stepless speed regulation |
Superfinishing head oscillation frequency | 0~1000 r/min Stepless speed regulation |
Oscillation angle | 0~40° |
Total power of machine tool | 8.0KW |
Working efficiency | 10s / PCS |
