Adopt dual station processing method to process workpieces separately: Upper and lower raceway.
Horizontal feeding of loading and unloading reduces collision damage, and inserting connections saves time and space, easy to operate.
Adopts parameter setting input through touch screen, which is convenient for adjustment and management.
Each channel is controlled by its own independent servo, ensuring stability and reliable.
The workpiece spindle and motion guide rail are lubricated with oil mist;
Workpiece speed and oscillation frequency are both controlled by a frequency converter.

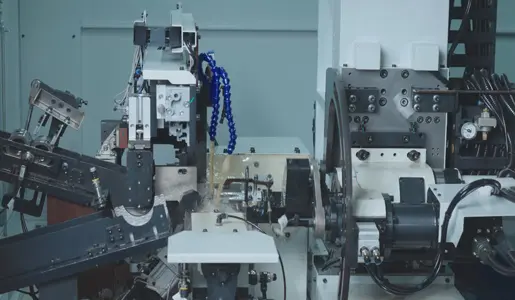

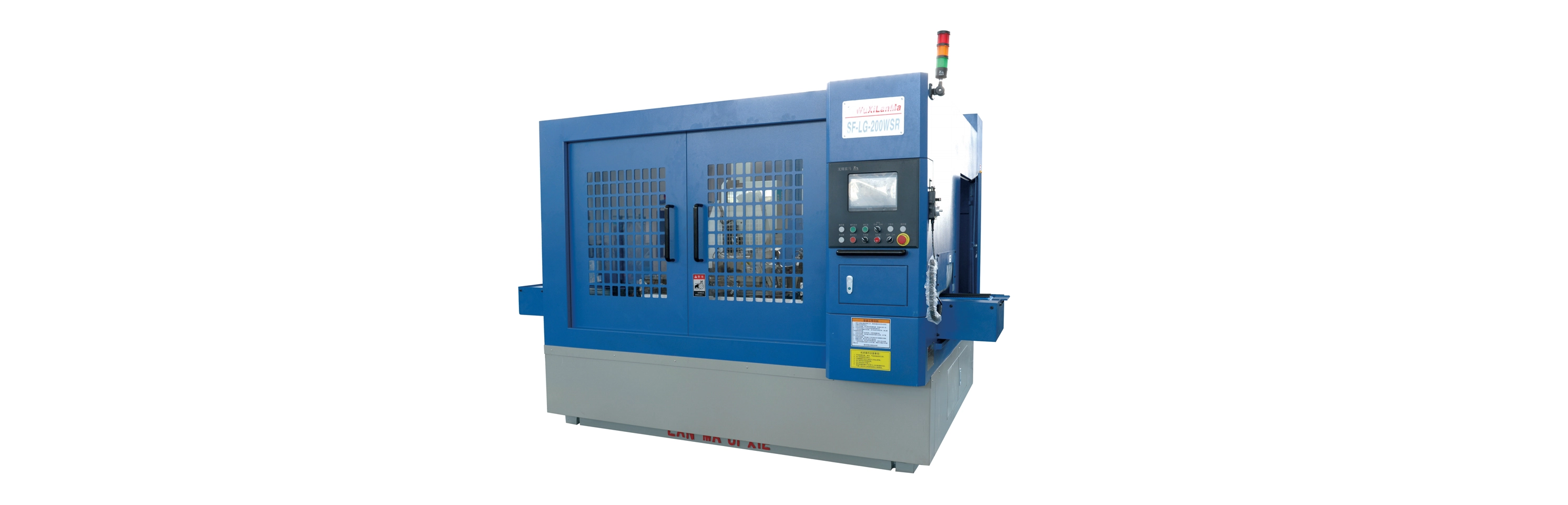

Full-automatic wheel hub inner (outer) ring dual station groove bearing superfinishing machine | ||
Technical Specifications | ||
TYPE | SF-LG-200NSR | SF-LG-200WSR |
Spindle speed | 0~5000 r/min | 0~5000 r/min |
Inner and outer diameter of the ring | ф30~ф150mm | ф60~ф180mm |
Ring height | 30mm~100mm | 30mm~100mm |
Angle adjustment range | 0~40° | 0~40° |
Total Power | 8KW | 8KW |
oscillation frequency | 50-1500 T/M | 50-1500 T/M |
Working efficiency | 25-35s/ PCS | 25-35s/ PCS |
Station | 2 | 2 |
