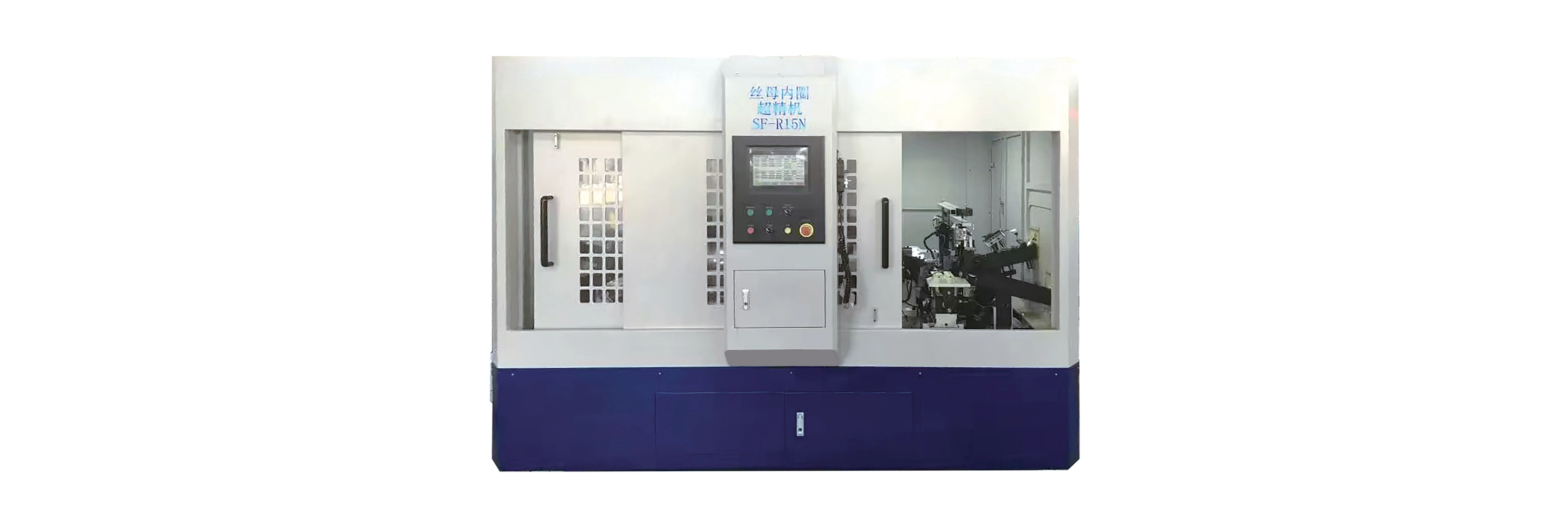

SF-R15N Nut Inner Ring Superfinishing Machine

Features of SF-R15N Nut Inner Ring Superfinishing Machine

• The SF-R15N Nut inner ring superfinishing machine is a fully automatic machine tool, suitable for use in large-scale production workshops.

• Adopting a two-stage rough and fine superfinishing process, the speed of the workpiece spindle can be infinitely adjusted, with a wide range of applications.

• The swing head is directly driven by a servo motor, and the swing amplitude and angle can be modified through the touch screen.

• The workpiece spindle is supported by precision bearings and directly driven by a servo motor through a synchronous belt. The front end of the spindle is equipped with end face support.

• The clamping method of machine tools: using a centerless clamping method that supports the outer diameter of the workpiece and compresses the end face, the workpiece has high rotational accuracy.

• The process parameters of machine tools have strong variability. The workpiece speed and superfinishing head oscillation frequency all use stepless speed regulation.

• Oil stone can be automatically compensated, with less mid stop. After the oil stone is worn out, it will automatically sound an alarm and stop the machine for replacement.

• The two grooves of the nut inner ring are completed at one workstation, changing the angle by the oil cylinder automatically, two grooves can be machined on one reference surface, improve product quality and enhance processing efficiency.

• Angle adjustment is controlled by servo motors, which does not need manual proofreading.
