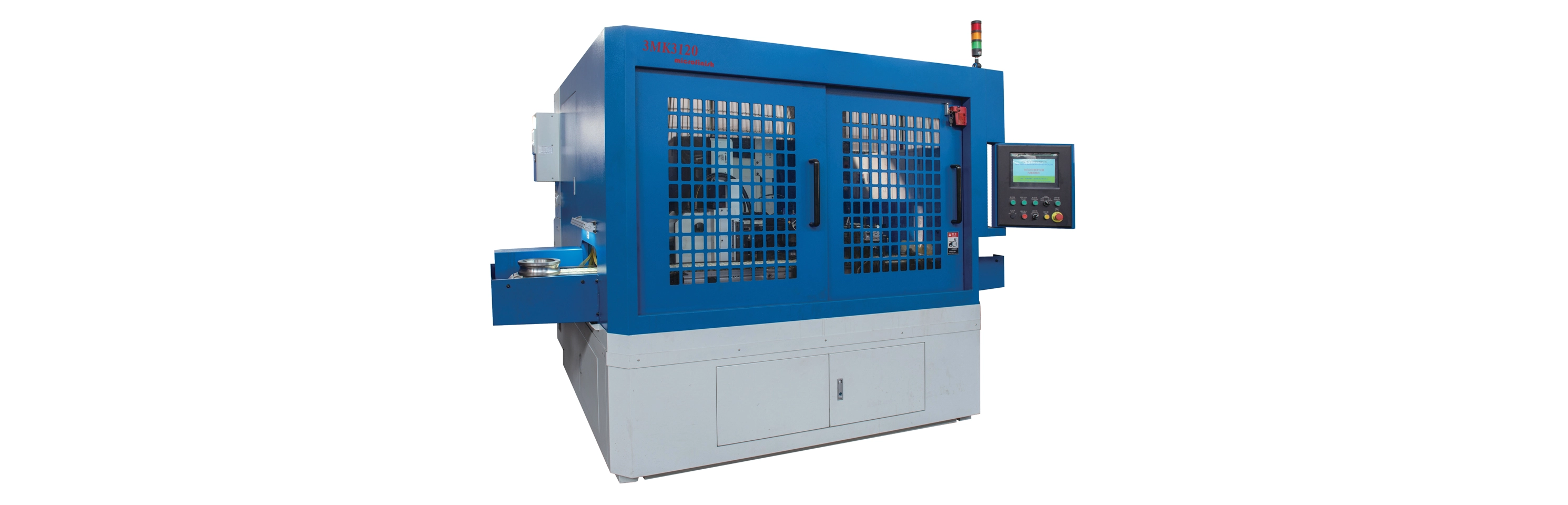

3MK3115 / 3MK3225 Angular Ball Bearing Superfinishing Machine

Features of 3MK3115 / 3MK3225 Angular Ball Bearings

• 3MK3115 is used for superfinishing the inner ring groove of bearings.

• 3MK3115 adopts the clamping method of inner hole centering and end face compression, resulting in high precision of workpiece rotation.

• 3MK3225 is used for superfinishing the outer ring groove of bearings.

• 3MK3225 adopts the ceramic support outer diameter and end face compression method for centerless clamping, the workpiece has high rotational accuracy

• The workpiece completes three rounds of superfinishing on one workstation, and the stone rough finishing is pressurized three times.

• The stone pressure is controlled by a proportional valve. Effectively improve product quality and enhance processing efficiency.

• Automatic compensation for oil stone wear and tear, alarm while the stone is too short.

• Loading and unloading use cylinder rotation, pushing and discharging by cylinder. Avoid damaging the outer diameter of the workpiece.

• The workpiece spindle is lubricated with oil mist, and the workpiece speed and oscillation frequency are controlled by a frequency converter.

• The machine tool adopts Mitsubishi PLC, frequency converter, and touch screen. The system is stable and reliable, with parameter settings inputted through a touch screen, easy to debug and manage.

• This machine tool adopts a single workstation, and both the worktable and oscillating frame are driven by servo.
