This machine tool adopts a CNC system, which works stably and reliably
CNC control with feed adaptive control performance
Automatically eliminate grinding idle stroke, multiple cycle control
Linear servo control vibration head, the frequency and amplitude of vibration can be precisely controlled
A new type of vibration mechanism with coarse, super fine, and super self conversion, without wear and tear, has a long service life
Three axis linkage achieves interpolation and positioning

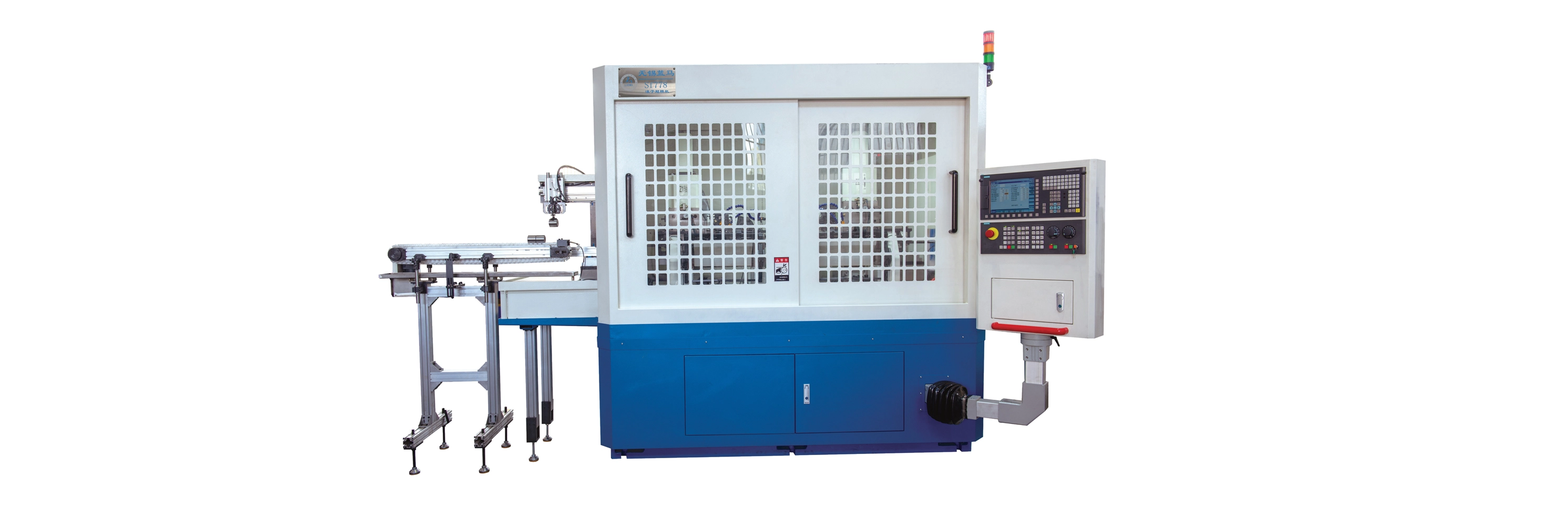

Fully automatic roller bearing superfinishing machine | |
Technical Specifications | |
TYPE | SF788 |
Outer diameter of workpiece (mm) | ф14~ф50mm |
Workpiece length (mm) | 12~60 mm |
number of spindle heads | 2 |
C-axis angle(°) | ±15° |
Workpiece shaft speed (r/min) | 40~1000 |
stone oscillation frequency (times/min) | 0~550 |
Small oscillation stroke | 0~5 |
stone pressurization method | Air pressure 0-0.4Mpa |
Superfinishing time | 10~80s |
Workpiece axis motor | Servo motor power 2kw |
large reciprocating motor | Servo motor power 750kw |
small oscillation motor | Servo motor power 750kw |
X-axis motor | Servo motor power 750kw |
Y-axis motor | Servo motor power 750kw |
C-axis motor | Servo motor power 750kw |
filter motor | Y801-4, 0.55KW |
workpiece support method | Double roll bar drive |
Height of machining center | 1200mm (from the ground) |
Workpiece lubricating oil | Grease lubrication |
Total power of machine tool | 10KW |
Machine tool dimensions (length x width x height) (mm) | 3380*2400*2140 |
Total weight of machine tool (Kg) | 6000 |
