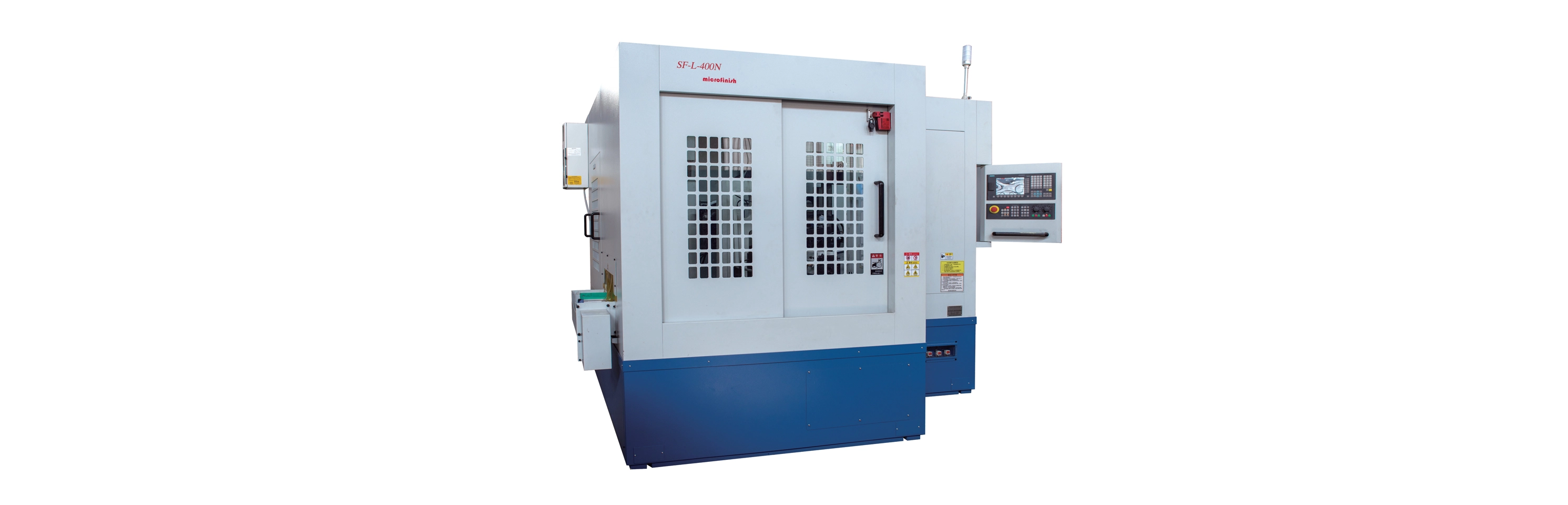

SF-L-400N / SF-L-400W Cylindrical Tapered Roller Bearing Machine

Features of SF-L-400N / SF-L-400W Cylindrical Tapered Roller Bearings

• The inner ring channel and rib are simultaneously superfinished. The inner ring / outer ring has improved by 30% in terms of quality and efficiency compared to the original traditional processing technology, with reduced scratching and damage during horizontal feeding, space-saving placement of the connecting line, simple operation, and all machine tools adjusted directly in front.

• Replace the stone to automatically remove material

• The machine tool adopts Mitsubishi PLC, frequency converter, and touch screen, which ensures stable and reliable system performance. The parameter settings are input through the touch screen, which facilitates debugging and management,

• Using ceramic centerless support for workpieces, with their end faces compressed.

• The workpiece spindle is lubricated with oil mist. The workpiece rotation speed and oscillation frequency are adjusted by the frequency converter

• The workpiece is superfinished at a single station, with rough oilstone and secondary pressurization for fine finishing, and automatic compensation for losses.

• Automatic feeding and automatic material handling

• Total power of machine: 6/14 kw
